RAC 2100S Quick Fitting - For 8x14 Air Hose - 364310

Quick safety connection for compressed air hose Ø 8 mm

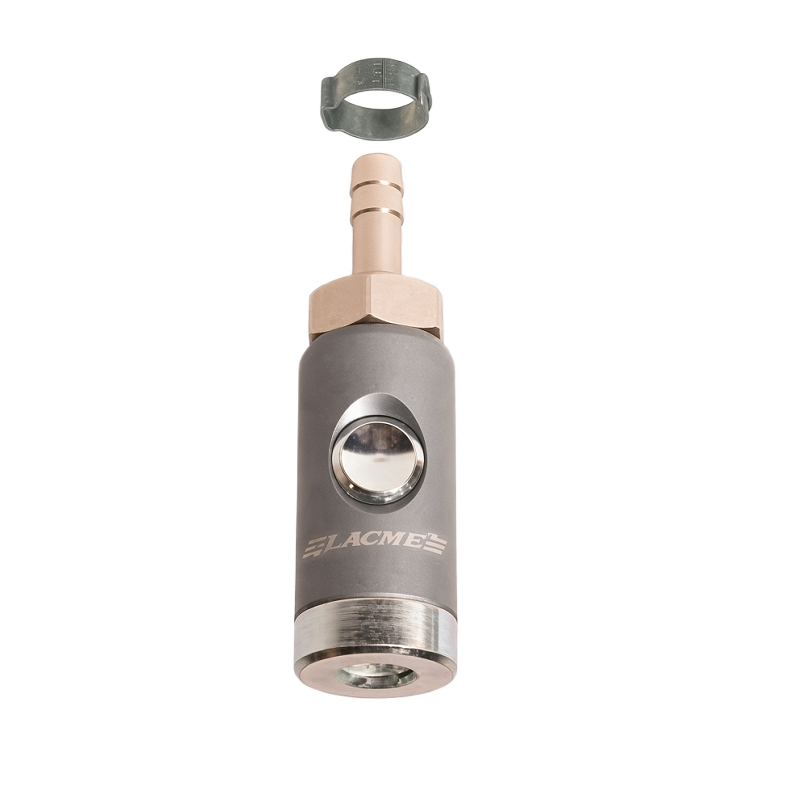

The Lacme RAC 2100 S is a fast safety coupler for connecting compressed air circuits. It is designed to be used with a pipe with an inside diameter of 8 mm and a compatible tip ISO 6150 Series B.

This 2100 S series connector uses technology to Double support intended to secure decouplement. Its anodized aluminum body offers a robust and lightweight set. The fitting is also orientable, which allows positioning the push button according to the installation.

A design adapted to compressed air installations

RAC 2100 S is designed for compressed air facilities and equipment. Its double-support design provides a safety function when decoupling the fitting.

• Double support technology to secure decouplement.
• Anti-shot coupler.
• Anodized aluminum body.
• Steerable fitting To facilitate the positioning of the push button.
• Nominal passage of 5.5 mm.
• Compatible with tips ISO 6150 Series B.
• Operating pressure between 0 and 16 bar.
• Service temperature of -20 ° C to +70 ° C.

Technical specifications

• Product Type: Quick safety coupler for compressed air
• Use: Connection of pipes and compressed air equipment
• Inside diameter of the pipe: 8 mm
• Passage: 5.5 mm
• Compatible tip type: ISO 6150 Series B
• Safety Standard: ISO 4414
• International compatibility: ISO 6150 Series B and US MIL 4109 C
• Body: Anodized aluminum
• Service pressure: 0 to 16 bar
• Operating temperature: -20 ° C to +70 ° C
• Orientation: steerable fitting
• Manufacturer Part Number: 364310
• Brand: Lacme
• Packaging: 1 piece

For which user?

The 2100 S RAC is for users of compressed air equipment and installations requiring quick connection on an internal diameter pipe 8 mm.

• Workshops using pneumatic tools.
• Body professionals using pneumatic equipment.
• Mechanical and maintenance workshops.
• Compressed air installations requiring fast connections.
• Users looking for a coupler with safety function during decouple.

On which supports use this product?

Pipe compatibility: Pipe with an 8 mm inside diameter, depending on the characteristics communicated by Lacme.

Why choose RAC 2100 S?

• Quick coupler designed for compressed air circuits.
• Double-support technology to secure decouplement.
• Anti-slip design.
• Anodized aluminum body.
• Swivel fitting to facilitate the positioning of the push button.
• Service pressure up to 16 bar.
• Compatibility with ISO 6150 BC tips.

In what cases use this quick coupling?

• Connecting an 8 mm inside diameter compressed air hose.
• Quick connection of compatible pneumatic equipment.
• Installation or replacement of a coupler on a compressed air circuit.
• Equipment of a body workshop using pneumatic tools.
• Connection requiring a safety system during decouplement.

How to install the quick coupling in the rules of the art?

1. Check that the pipe used has a good 8 mm inside diameter.
2. Check the compatibility of the tip with the standard ISO 6150 Series B.
3. Put the compressed air circuit off pressure before any intervention on the connection.
4. Connect the pipe to the coupler according to the expected mounting system.
5. Check the good mechanical hold of the pipe before pressurizing.
6. Reset the circuit under pressure and control the absence of leakage.

Quick fitting and complementary compressed air equipment

To complete a pneumatic installation, this coupler can be associated with the different compressed air connection and supply equipment available in our catalog, including the Compressed air pipesthe Compressed air fittings and the Pneumatic tools.

Frequently Asked Questions about RAC 2100 S

What diameter of pipe need for the RAC 2100 S?

The 364310 referenced model is planned for a Indoor diameter pipe 8 mm.

What maximum pressure can support the 2100 s Rac?

The service pressure indicated by Lacme is between 0 and 16 bar.

With which tips is the RAC 2100 S compatible?

LACME indicates compatibility with tips corresponding to the standard ISO 6150 Series B. The manufacturer also mentions compatibility with the International Standard US MIL 4109 C.
