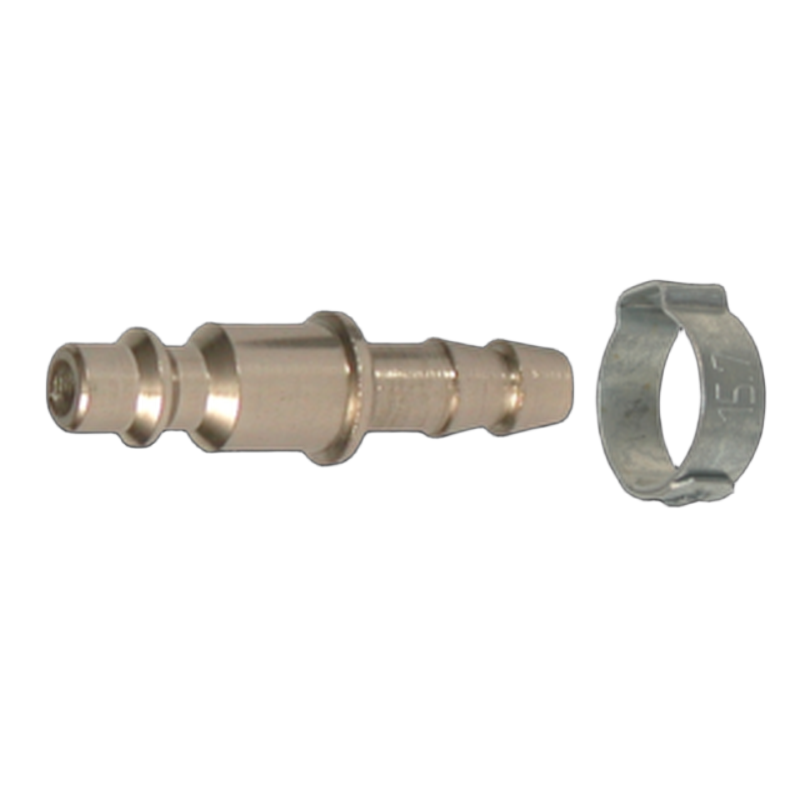

Fast connection Compressed air lacerated RAC 513 – ISO 6150 B 5.5 – hose Ø 8 mm 360700

Fast connector Compressed air lace 513 - ISO 6150 B 5.5 - Hose Ø 8 mm

The LACNER RAC 513 is a quick connector for 500 series compressed air circuit. It is equipped with a connection Fluted for pipe Ø 8 mm and uses the standard ISO 6150 Series B. Its connection and disconnection are done quickly thanks to a sliding ring.

RAC 513 integrates an automatic system to 6 stainless steel balls and is designed for a pressure pressure between 0 and 16 bar. With a weight less than 90 g and a service temperature range of -15 ° C to +80 ° C, it is suitable for installations and equipment using ISO 6150 B fast fittings.

Technical characteristics

• Brand: Lacmé
• Model: RAC 513
• Series: 500
• Type: Quick fitting / compressed air coupler
• Standard: ISO 6150 Series B
• Nominal diameter: Ø 5.5 mm
• PIPE CONNECTION: Fluted for pipe Ø 8 mm
• Service pressure: 0 to 16 bar
• Operating temperature: -15 ° C to +80 ° C
• Locking system: 6 stainless steel balls
• Login / Disconnection: by sliding ring
• Weight: less than 90 g
• Manufacturer Part Number: 360700

ISO 6150 B Series B-Series Quick Fitting

RAC 513 belongs to the range of Fast Iso Fittings Lacked 500 Series. Its compatibility with the standard ISO 6150 Series B Allows its use with the elements of the same standard, subject to checking the compatibility of the associated fitting.

Its sliding ring system allows a quick login and disconnection. The mechanism uses six stainless steel balls to maintain the connected connector.

Connection for pipe Ø 8 mm

RAC 513 is equipped with a connection Fluted for a diameter pipe 8 mm.

This connection makes it possible to connect between the compressed air hose and the quick coupling system. The diameter of the pipe must be checked before mounting to ensure correct compatibility.

For which user?

LaCré CAR 513 is for users with an installation or equipment that runs at thepressurized air and using fast fittings in accordance with ISO 6150 Series B.

In particular, it can be used in an environment ofworkshop or for connecting pneumatic equipment, provided that the characteristics of the circuit remain within the limits specified by the manufacturer.

Why choose the lacée CAR 513?

• Standard ISO 6150 Series B For compatibility with the corresponding connections.
• Fluted connection for pipe Ø 8 mm.
• Service pressure up to 16 bar.
• Quick connection and disconnection Thanks to the sliding ring.
• 6-ball stainless steel system.
• Light format with a weight less than 90 g.
• Wide service temperature range from -15 ° C to +80 ° C.

Specifications and compatibility

Before ordering, verify that your installation uses the Standard ISO 6150 Series B and that the pipe to be connected has the diameter adapted to the fluted fitting of Ø 8 mm.

RAC 513 is given by lacé for a Service pressure from 0 to 16 bar. The operating characteristics specified by the manufacturer should not be exceeded.

FAQ - LACNER RAC 513

What is the standard of the lacked connection RAC 513?

RAC 513 is compatible with the standard ISO 6150 Series B.

Which pipe diameter can be connected to CAR 513?

RAC 513 has a fluted connection provided for a Ø 8 mm pipe.

What is the maximum pressure of CAR 513?

The service pressure indicated by lacé is between 0 and 16 bar.

How does the RAC 513 connect?

The connection and disconnect is made using a sliding ring.

Is RAC 513 a quick connection for compressed air?

Yes I do. Lacked class the RAC 513 in its range of ISO Quick Fittings for Compressed Air, 500 series.

Is RAC 513 compatible with ISO 6150 B Series?

Yes I do. Lacked explicitly indicats compatibility with the standard ISO 6150 Series B.

What is the temperature of RAC 513?

The operating temperature indicated by the manufacturer is between -15 ° C and +80 ° C.

What is the weight of the ACCR 513 tag?

The weight indicated by lacé is less than 90 g.

What is the manufacturer reference of CAR 513?

The manufacturer reference of the ACC 513 is 360700. Its EAN13 is 3415163607008.
